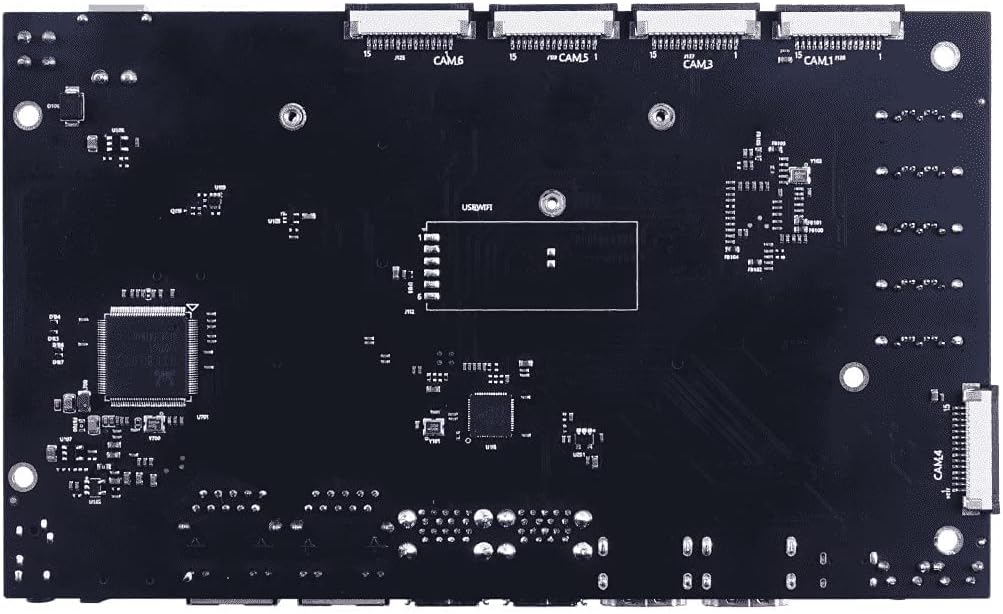

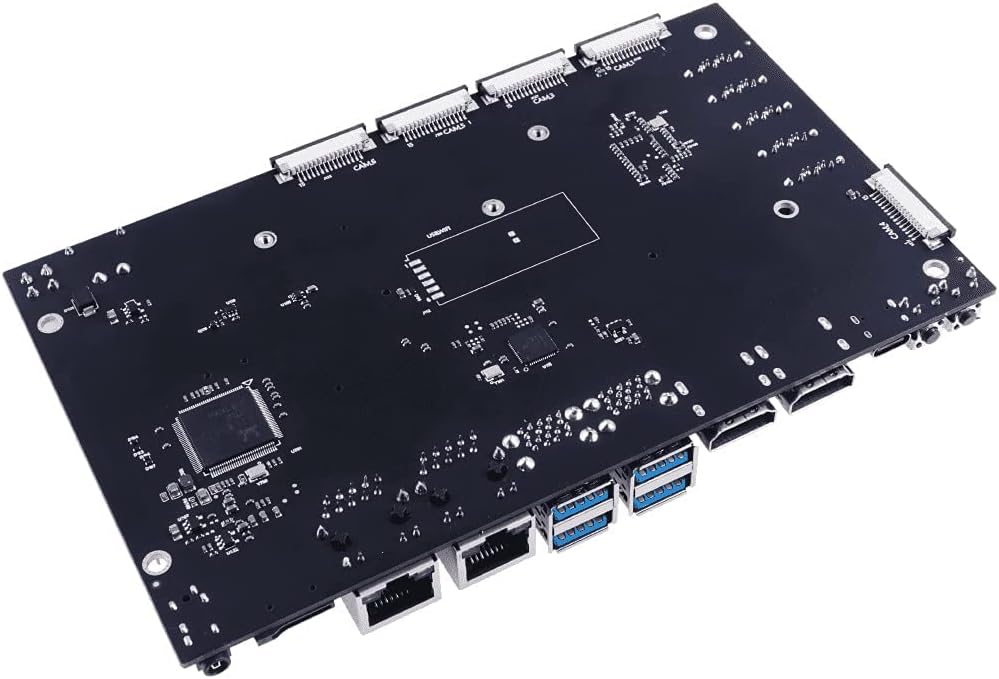

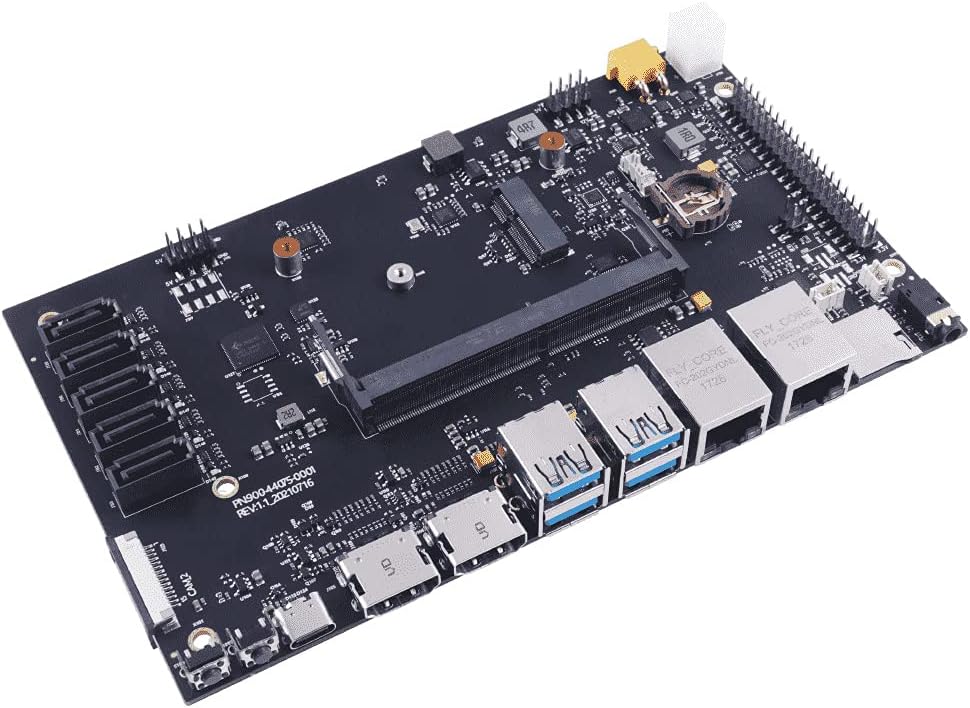

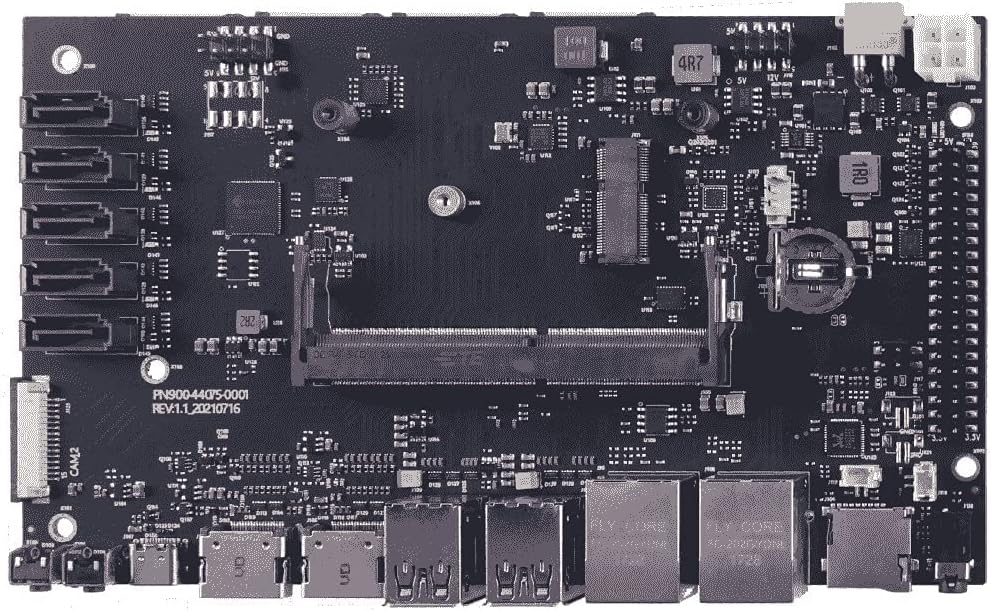

Carrier Board with 6 CSI Camera, 2 HDMI, 5 SATA, M.2 Key E X158
Sale price
$31.90
Regular price $137.92
Skip to product information
【Multi-Interfaces】A205 is a high-performance, interface rich Jetson Nano / Xavier NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.0, USB 2.0 (w / OTG function) m.2 key ewifi / BT, m.2 key m, SATA, CSI camera, RS232, SD card, can, PIO, I2C, I2S fans and other rich peripheral interfaces are suitable for environments with strict environmental requirements, complicate real-time vision computation.
【Applications】This carrier board could support JetPack, which includes a board support package (BSP), Linux OS, cuDNN, and TensorRT software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. With its multiple camera connectors, it is suitable for complicate AI graphical application such as Automated Optical Inspection, In Video Action, Robot controlAOI, 3D modeling, Drone, parallel computing for Computer vision.
【Notice】This carrier board only works with Jetson Nano Module or Xavier NX module.
Carrier Board with 6 CSI Camera, 2 HDMI, 5 SATA, M.2 Key E X158
Sale price
$31.90
Regular price $137.92
Shipping calculated at checkout.
【Multi-Interfaces】A205 is a high-performance, interface rich Jetson Nano / Xavier NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.0, USB 2.0 (w / OTG function) m.2 key ewifi / BT, m.2 key m, SATA, CSI camera, RS232, SD card, can, PIO, I2C, I2S fans and other rich peripheral interfaces are suitable for environments with strict environmental requirements, complicate real-time vision computation.
【Applications】This carrier board could support JetPack, which includes a board support package (BSP), Linux OS, cuDNN, and TensorRT software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. With its multiple camera connectors, it is suitable for complicate AI graphical application such as Automated Optical Inspection, In Video Action, Robot controlAOI, 3D modeling, Drone, parallel computing for Computer vision.
【Notice】This carrier board only works with Jetson Nano Module or Xavier NX module.

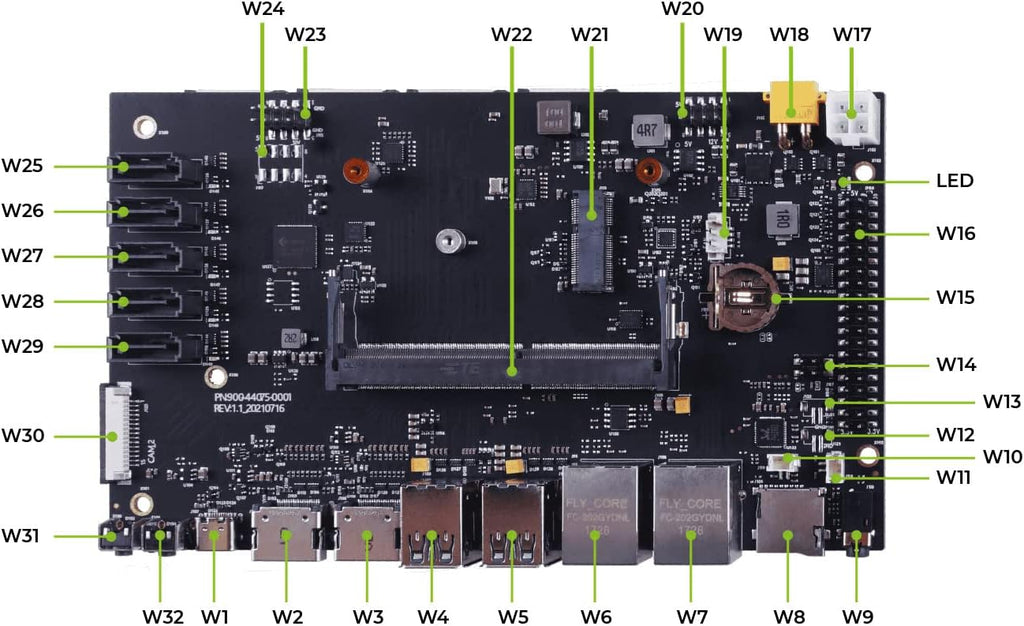

| A203 | A205 | A206 | |
|---|---|---|---|
| Module Compatibility | Jetson Nano/NX/TX2 NX | Jetson Nano/NX/TX2 NX | Jetson Nano/NX/TX2 NX |

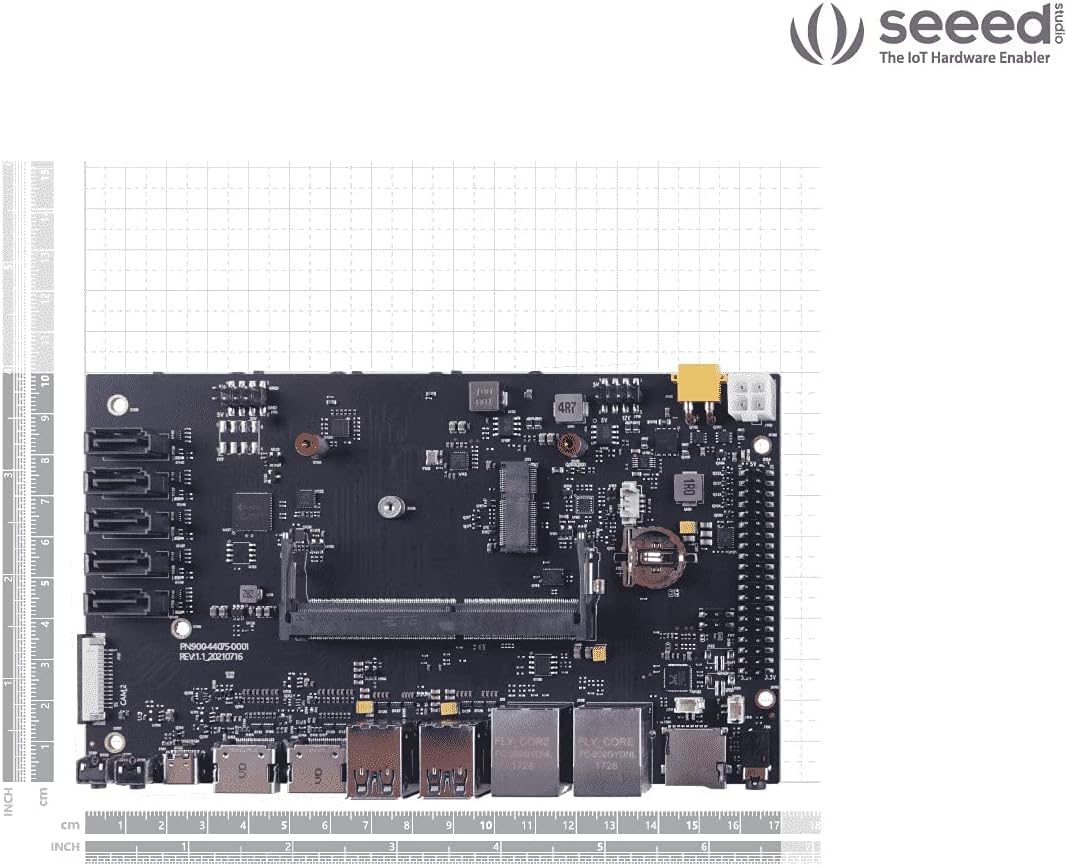

| PCB Size / Overall Size | 87mm*52mm | 170mm*100mm | 100mm*80mm |
| Display | 1*HDMI | 2*HDMI | 2*HDMI |

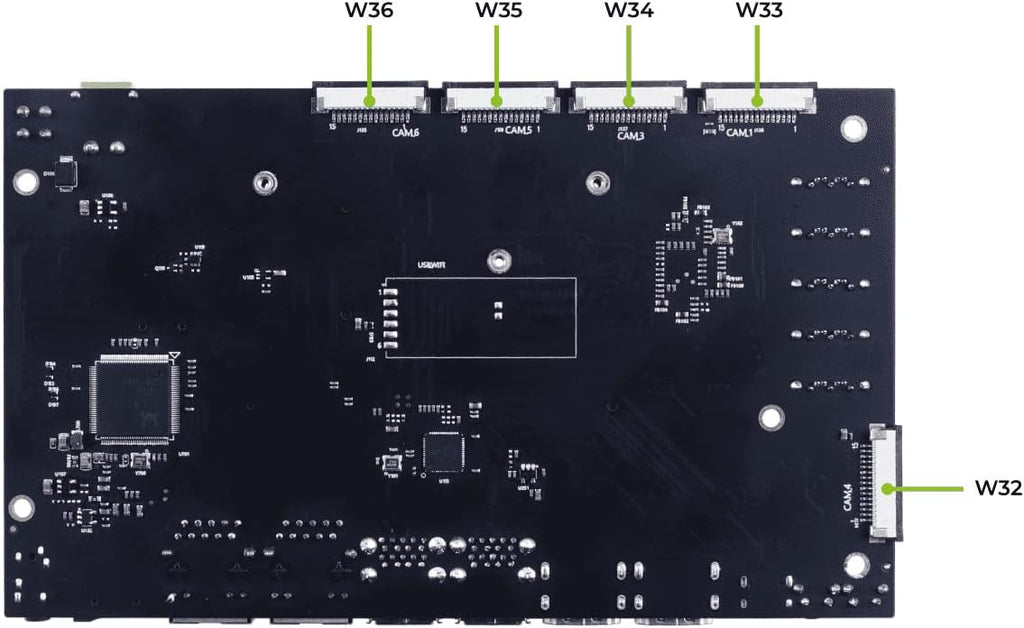

| CSI Camera | 1*CSI | 6*CSI | 2*CSI |
| Ethernet | 1x Gigabit Ethernet (10/100/1000M) | 2x Gigabit Ethernet (10/100/1000M) | 1x Gigabit Ethernet (10/100/1000M) |
| USB | 2* USB 3.0 Type A (Integrated USB 2.0); 1* USB Micro B(Not support power input) | 4* USB 3.0 Type A (Integrated USB 2.0); 1* USB 2.0 Type C(Support OTG) | 4* USB 3.0 Type A (Integrated USB 2.0); 1* USB Micro B(Not support power input) |
| SATA | - | 5 SATA | - |
| M.2 Key M | 1*M.2 Key M | - | 1*M.2 Key M |
| M.2 Key E | 1*M.2 Key E | 1*M.2 Key E | 1*M.2 Key E |
| TF_Card | 1* TF_Card | 1* TF_Card | - |
